Truma Electric Caravan Motorhome Water Heater 71201-20 - Grasshopper Leisure

Product Description

Running on 230V mains electric with a powerful 850 watt heating element and a large 14 litre water capacity as well as near-silent operation, the Truma Electric Water Heater is ideal for use as a water boiler for your caravan, campervan or motorhome. The water heater is simple to use with an on/off control panel.

Fast water heating and great thermal insulation

The Truma electric water heater can increase the temperature of your water from 15°C to 70°C in approx. 70 minutes. It is insulated using special expanded polypropylene foam, which is both lightweight and provides optimum insulation performance, with temperature dropping by just approx. 1°C per hour.

Safe for drinking water and high pressure water feeds

The heater is constructed from stainless steel and is safe for use with drinking water. Installation is quick and easy and the water heater is suitable for pressure-resistant hot water hoses with a diameter of 10mm and water systems up to a maximum of 2.8 bar (or higher with a pressure reducer).

Particularly large capacity

The powerful heating element heats water within a short time
High quality insulation for minimum heat loss
Low power consumption

The Truma electric water heater heats the water in your caravan or motor home quickly and keeps it hot for a long time. This allows you to wash your hands thoroughly, wash dishes and even take a long shower at any time: the high quality stainless steel container with extra-large capacity makes this possible. The Truma electric boiler consumes little electricity and operates almost silently.

The boiler is insulated with a special expanded polypropylene (EPP) foam. This lightweight material has optimum thermal insulation properties. The water temperature drops by just 1°C per hour and reheating takes next to no time, despite the size of the water tank. The stainless steel container and all other materials that come into contact with water are safe for use with drinking water.

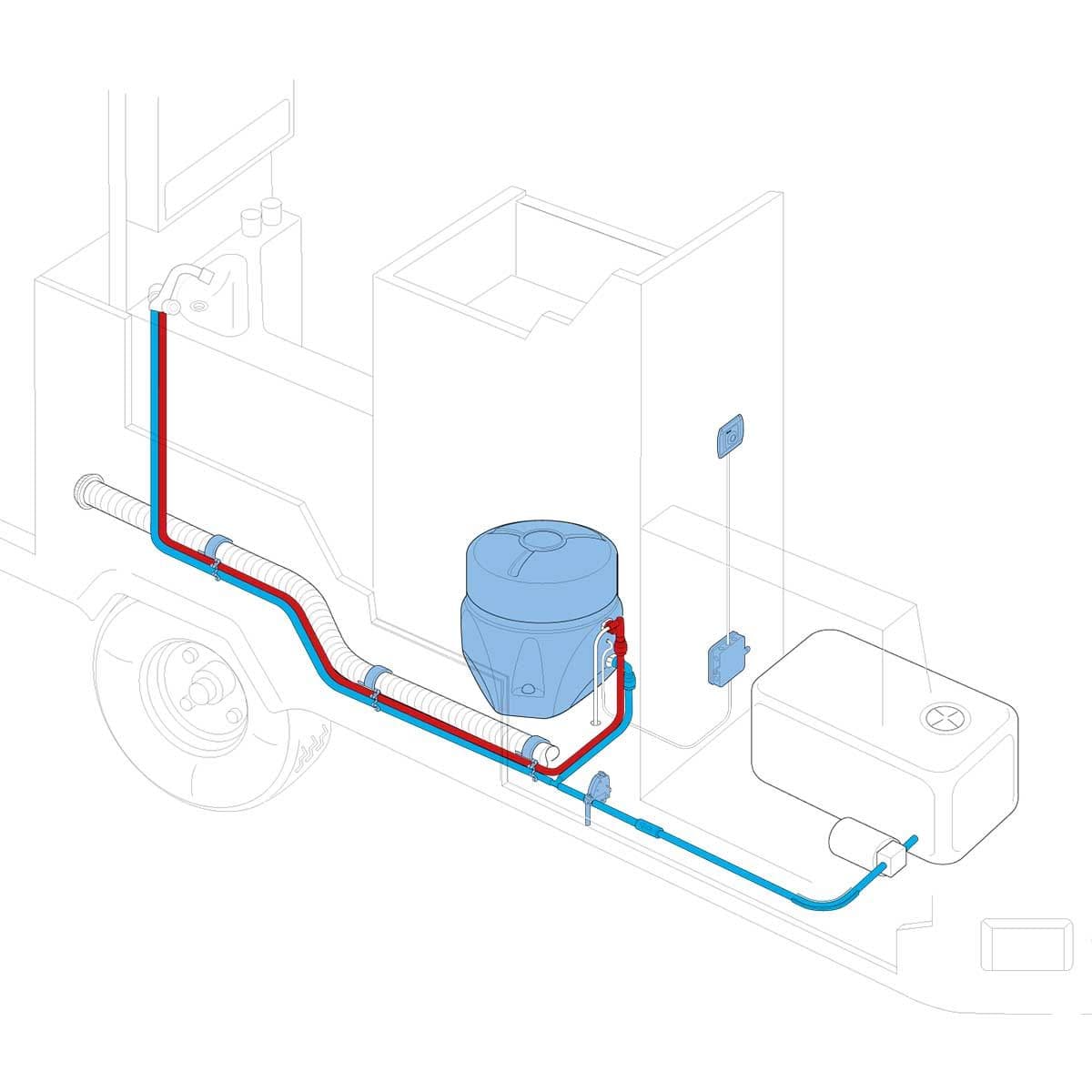

Quick and easy installation
For pressure-resistant hot water hoses with 10 mm diameter
For city water systems to max. 2.8 bar (from 2.8 bar in combination with a pressure reducer)

Specifications

Power Supply: 230V 50Hz Electric
Power Consumption: 3.7A (850W)
Water Capacity: 14 Litres
Heating Time: approx. 70 minutes 15°C to 70°C
Temperature Limit: 70°C
Over-temperature Protection: 90°C
Pump Pressure: Max. 2.8 bar
System Pressure: Max. 4.5 bar
Weight (empty): approx. 3Kg
Dimensions (HxW): 295 x 405 mm
Application: Caravan Motorhome or Campervan

Download Installation Instructions Boiler Electric Here

* The water heater does not come with any water fittings, you will require the Truma John Guest Ultrastore Assembly Pack (70400-52)
