Product Description

Fiamma F80S 400 Awning White Case Grey 07830E03R Or Blue 07830E03Q Fabric

The Fiamma F80S awning is a popular choice for RV and camper van owners looking for a durable and versatile awning. It has a compact and streamlined design, which minimises wind resistance while driving.

This 2024 model comes with several updates and features designed to enhance its functionality and ease of use.

The awning is constructed from high-quality materials that ensure durability and longevity. The casing is made from sturdy yet lightweight aluminium. The awning fabric is made up of multilayer canvas which is waterproof, UV-resistant vinyl and washable.

The awning can be operated manually using a hand crank as supplied. An optional electric motor can also be fitted for added convenience.

The F80S is designed for easy installation, with brackets and mounting options that fit a wide range of vehicles.

Integrated LED lighting options are available for use during nighttime or low-light conditions and are easily installed on the lead bar and on the rear case.

F80S awnings are compatible with Fiamma's privacy rooms, which convert the awning into a fully enclosed space.

Optional wind supports and tie-down kits are available to provide additional stability in windy conditions.

This model is 4M long and with Polar White Outer Box and Royal Grey or Royal Blue fabric. Fiamma Awning Rafter included ONLY on lengths 400, 425 and 450.


Specifications

Brand Fiamma
Size 400
Weight 34kg
Operation Winch Handle
Length Case: 400cm / Fabric Width: 388cm
Application Motorhomes
Position Roof Mounted
Case Colour Polar White
Enclosure Type Privacy Room, Privacy Room Light, Blocker and Side
Fabric Colour Royal Grey or Royal Blue
Series F80

Shade Surface

Extension

9.7m2

250cm

Key Features

  • Restyled for 2024
  • Manual winch opening and closing with a crank handle
  • Optional electric motor can be fitted
  • Reinforced arms with a unique design to provide extra strength and stability
  • Compact, reliable and robust
  • Equipped with triple guide on the lead bar
  • Aluminium end caps for maximum strength
  • Case box made of extra-strong, super-light Alu-Lite aluminium
  • Multilayer canvas made of waterproof, UV-resistant vinyl that is washable
  • Privacy Room and many other accessories available

Installation And Usage Instructions

Fiamma F80S General Information Sheet

Buying Guide F80S Ducato, Boxer, Jumper

Before 06/2006:

F80S 290 (medium wheel base 3200 mm)

F80S 340 (long wheel base 3700 mm).

After 06/2006, High Roof:

F80S 320: Vehicle length 5416 mm (wheel base 3450 mm).

F80S 370: Vehicle length 5998 mm (wheel base 4035 mm).

F80S 400: Vehicle length 6363 mm (wheel base 4035 mm).

Fiat Ducato,

Jumper or Boxer

Vehicle Height Vehicle Length Awning Adapter
Before 06-2006 H2 (2524 mm) L2 (5099 mm) F80s 290

98655-373 or 98655-693

Before 06-2006 H2 (2524 mm) L3 (5599 mm) F80s 340 98655-373 or 98655-693
After 06-2006 H2 (2524 mm) L2 (5416 mm) F80s 320 98655Z101 or 98655Z149
After 06-2006 H2 (2524 mm) L3 (5998 mm) F80s 370 98655Z101 or 98655Z149
After 06-2006 H2 (2524 mm) L4 (6363 mm) F80s 400 98655-904 or 98655Z093

After 06-2006

H3 (2764 mm)

L2 (5416 mm) F80s 320 98655-656

After 06-2006

After 06-2006

H3 (2764 mm)

H3 (2764 mm)

L3 (5998 mm)

L4 (6363 mm)

F80s 370

F80s 400

98655-656

98655-656



*This item is for delivery only, please contact us if you wish to collect it from our store.


Related Products:

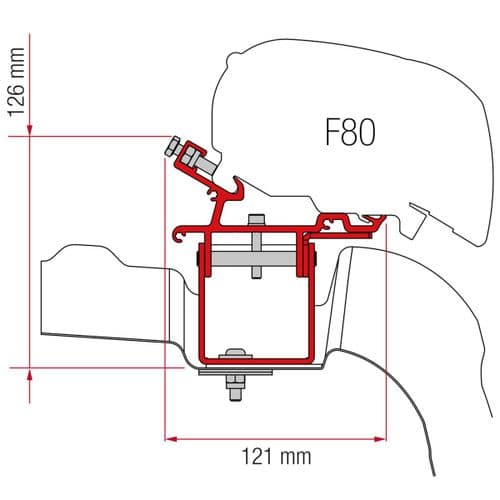

F80 Awning Fitting Kits / Adaptors / Brackets
