Product Description

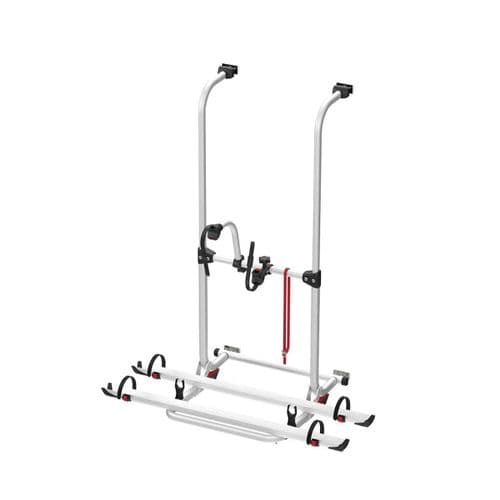

Fiamma Carry-Bike Pro N Motorhome Cycle Rack Carrier

The Fiamma Pro N Carry-Bike is designed for installation on the rear wall of motorhomes fitted with the Fiamma original bracket.

The bike carrier can carry two bikes or can be adapted to carry up to four standard bikes (or two e-bikes) with additional parts (available separately). The Pro N can carry a maximum load of 60kg.

The telescopic bike carrier has an adjustable upper structure for better stability. The rounded tube structure is easily adjustable from 80 to 150cm in height to fit different installation requirements. It is supplied with the bottom support bar fixing system.

The Fiamma Pro N bike carrier is supplied with:

- Bike-Block Pro 1 (bike fixing system)

- Bike-Block Pro 3 (bike fixing system)

- Security Strip

- 2 x Rail Plus (bike rails)

- Brackets

- Vertical wheelbase: 80-150cm

- Horizontal wheelbase (distance between brackets): 60cm

- Distance between bike rails: 15cm

The carrier can be adapted to carry up to four bikes with the addition of Bike-Block Pro 2 and 4, and two additional Rail Plus rails.

This bike carrier can also be installed on the rear walls of caravans, contact our customer service team for advice.

Dimensions: 128 x 69 x 80cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).

Specifications

Replaces Fiamma 02094-09V
Dimensions 128 x 69 x 80cm
Brand Fiamma
Height Description 1300mm
Width 150mm
Depth 560mm
Weight 10.2kg
Colour Aluminium
Maximum Load Description 60kg
Application Motorhomes
Position Rear Wall
Capacity Description 2 Bikes as standard (Maximum 4 Bikes)
Supplied With Bike Block Pro 1, Bike Block Pro 3, Security Strip, 2 x Rail Plus, Brackets
Optional Extras Bike Block Pro 2, Bike Block Pro 4, 2 x Rail Plus
Country of Origin Italy

Key Features

  • Restyled 2023 model
  • 6060 aluminium tubes with oval section
  • Height-adjustable frame
  • Carries 2 bikes as supplied or up to 4 standard bikes (or 2 ebikes) with added parts
  • Telescopic rail support
  • Easy Position for the installation of offset rails
  • Bull Shock Absorber for absorbing shocks and vibrations
  • Bike-Block Pro scratch-proof bike locks
  • Sturdy rails with reinforced base delivered with Quick-Safe straps
  • Rack Holder safety carrier lock
  • Support Bar Kit: lower fixings with bar for easy installation
  • Quick Lock for quick and safe locking of the wheel to the rail

To upgrade the carry-bike to carry a 3rd bike, add the following -

Fiamma Bike Block Pro 2 Black

Fiamma Rail Plus Carry Bike Rail

To upgrade the carry-bike to carry 4 bikes, add the following -

Fiamma Bike Block Pro 2 Black

Fiamma Bike Block Pro 4 Black

2 x Fiamma Rail Plus Carry Bike Rail


Download the installation and usage instructions
