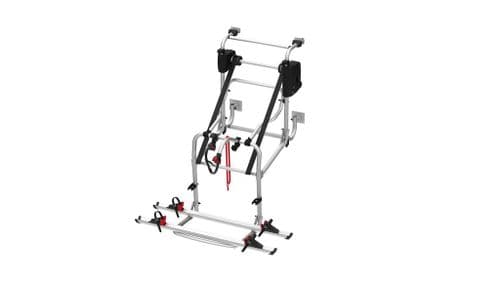

The Fiamma Motor Lift 77 is one of the most practical motorised bike carrier models, suitable for all types of motorhome.
The Carry-Bike can be installed on the back wall of the motorhome. Wall fixing points with vertical wheelbase from 68 to 108 cm.

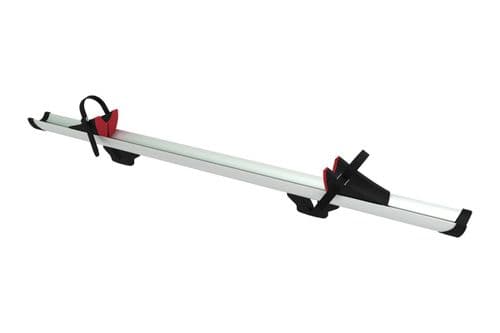

Two Rail Premium bike rails are delivered as standard and can carry any sort of bike. The bike carrier can also be adapted to carry up to four standard bikes (or two e-bikes) with additional parts (available separately).
The support rail lowers by 77cm for effortless loading and unloading of bicycles. The 12V lift is activated by push-button for easy ascent and descent.
The carrier can be adapted to carry up to four bikes with the addition of Bike-Block Pro S 2 and S 4, and two additional Rail Premium rails.
Dimensions: 128 x 78 x 68cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).
- Vertical wheelbase: 68 to 108cm
- Horizontal wheelbase (distance between brackets): 60cm
- Distance between bike rails: 15cm
For the Adapter Kit for installing the bike carrier on vehicles already fitted with Kit Support Bar, Fiamma part number 08724-01-.
Specifications
Dimensions |
1280 x 780 x 68mcm |
Brand |
Fiamma |
Type |
Bike Carriers |
Height Description |
680mm |
Width |
1280mm |
Depth |
780mm |
Weight |
17.4kg |
Colour |
Aluminium |
Primary Construction |
Aluminium |
Maximum Load Description |
60kg |
Application |
Motorhomes |
Position |
Rear Wall |
Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) / 2 E-Bike |
Supplied With |
Bike Block Pro S 1, Bike Block Pro S 3, Security Strip, 2 x Rail Premium |
Optional Extras |
Bike Block Pro S 2, Bike Block Pro S 4, 2 x Rail Premium |
Country of Origin |
Italy |
Key Features
- Restyled 2024
- Activation by push-button for easy ascent and descent
- Dropping support rail lowers by 77cm to load and unload bicycles effortlessly
- Tensioning belt to allow the rail support base to be raised and lowered
- Installation on the rear wall of the motorhome
To upgrade the carry-bike to carry a 3rd bike, add the following -
Fiamma Bike Block Pro S 2
Fiamma Rail Premium Carry Bike Rail
To upgrade the carry-bike to carry 4 bikes, add the following -
Fiamma Bike Block Pro S 2
Fiamma Bike Block Pro S 4
2 x Fiamma Rail Premium Carry Bike Rail
Download

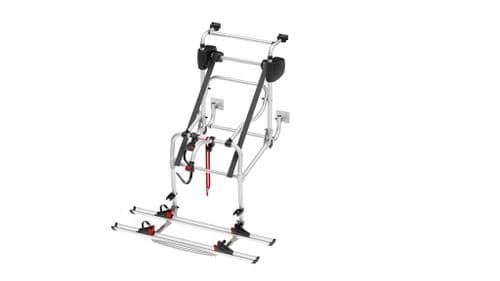

Fiamma Lift 77 And Lift 77 Motor Information Sheet
