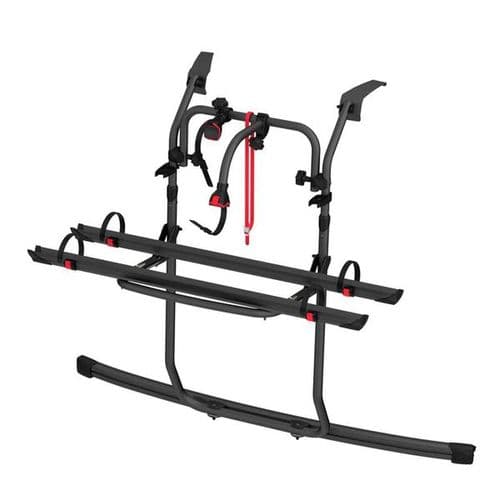

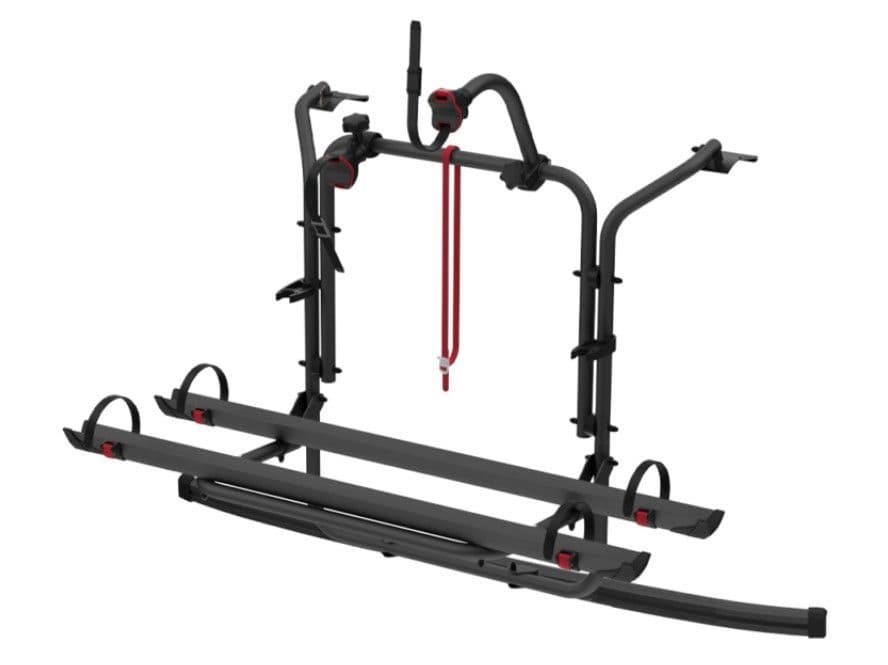

Fiamma bike carrier designed for installation on Ford Transit / Tourneo Custom single tailgate (≥ 2012 - H1) vehicles and on models with a lift roof or raised roof.
This bike carrier adheres to the lower part of the tailgate thanks to its curved profile that follows the shape of the vehicle. It carries two bikes as standard or three bikes (two ebikes) with additional Fiamma parts.
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 3 (Bike locking system)
- Security Strip

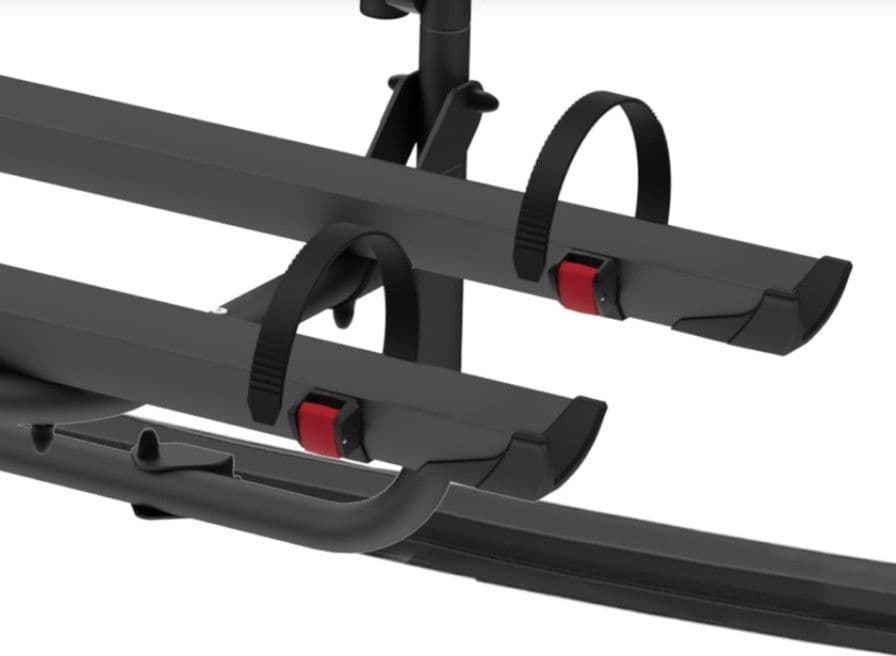

- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Deep Black
- Bikes carried standard: 2
- Bikes carried max.: 3
- Max load: 50kg
- E-Bike: Yes
- Position: Tailgate
- Vertical wheelbase: 88cm
- Horizontal wheelbase (distance between brackets): 91cm
- Dimensions: 156 x 60 x 88cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 8.6kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional - supplied separately
Dimensions: 156 x 60 x 88cm
Replaces: Fiamma 02094B07A
Brand: Fiamma
Height Description: 1300mm
Width: 150mm
Depth: 560mm
Weight: 8.6kg
Colour: Black
Primary Construction: Aluminium
Maximum Load Description: 50kg
Application: Campervans
Position: Tailgate
Capacity Description: 2 Bikes as standard (Maximum 3 Bikes)
Supplied With: Bike-Block Pro 1, Bike-Block Pro 3, Security Strip, 2 x Rail Plus, Brackets
Optional Extras: Bike-Block Pro 2, 1 x Rail Plus, Licence Plate Carrier
Country of Origin: Italy
Key Features
- Restyled 2023 model
- Fits vehicles with single tailgate and also for models with lift roof
- Allows the tailgate to be opened with the bike carrier mounted (without bikes)
Click here for the User's Manual

The Fiamma Carry-Bike Ford Custom comes standard to carry two bikes which can be upgraded to carry three bikes with an additional rail and support.
To upgrade the carry-bike to carry a 3rd bike, add the following -
Fiamma Bike Block Pro 2 Deep Black
Fiamma Rail Plus Carry Bike Rail Deep Black
