Fiamma Carry-Bike Caravan XL A Cycle Rack Carrier
The Fiamma Carry-Bike Caravan XL A bike rack fits almost all caravan frames (including Hobby and AL-KO) and can be installed on standard A-frame without the need to drill holes. This model has an aluminium finish.
The bike rack carries two bikes and the upper structure of the rack pivots forward allowing access to the caravan’s storage compartment (when bikes are not mounted).
Supplied with:
- 2 x Security strip
- 2 x Rail Quick Pro (bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Vehicle: Caravan
- Bikes carries as standard: 2
- Bike carried max.: 2
- Max load: 50kg
- Position: A frame

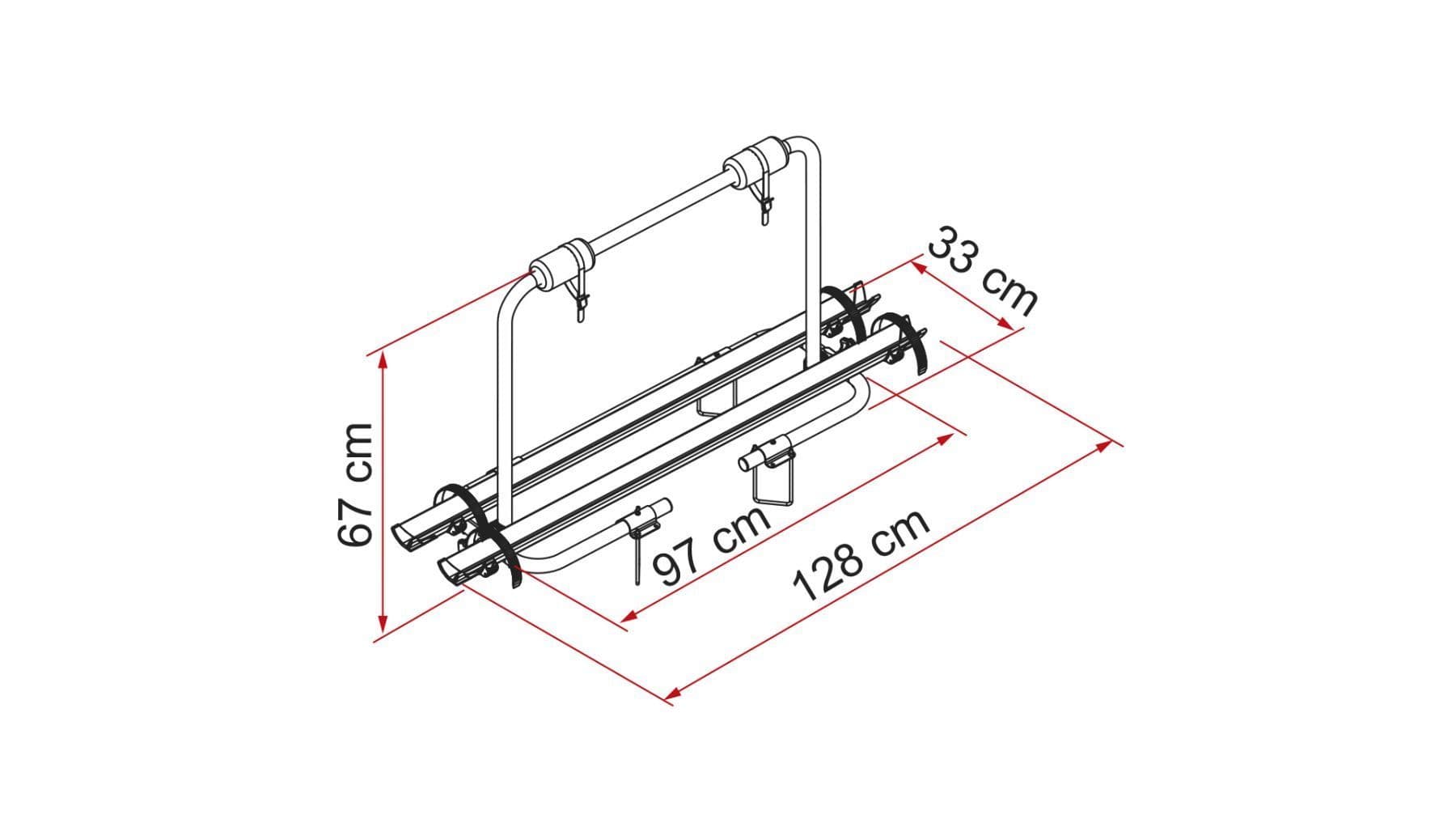

- Dimensions: 128 x 33 x 67cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 5.3kg
- Distance between rails: 15cm
- A-frame minimum size: 40.2cm
Specifications
| Dimensions | 128 x 33 x 67cm |
| Replaces | Fiamma 02094-23A |
| Brand | Fiamma |
| Height Description | 1200mm |
| Width | 150mm |
| Depth | 600mm |
| Weight | 5.3kg |
| Colour | Aluminium |
| Maximum Load Description | 50kg |
| Application | Caravans |
| Position | A Frame |
| Capacity Description | 2 Bikes |
| Supplied With | Rail Quick Pro x 2, Brackets, Fastening Strips Red x 2 |
| Optional Extras | Security Strip |
| Country of Origin | Italy |
Key Features
- Restyled 2023 model
- Installation without drilling holes on standard A-frames
- Upper structure pivots forward allowing access to the storage compartment (without bikes mounted)
- Installation brackets supplied as standard
- Protective bumpers to protect the bike from impacts with the bike carrier
- Quick Lock quick and safe locking of the wheel to the rail
- Security block locks the support rail during transport
Customer reviews
-
MPN:02096-23A
-
Brand:Fiamma
-
Condition:New
-
Product Code:02096-23A
-
Weight:5.3kg
