New 2024, looking to brighten up your caravan or motorhome? Instantly enhance your vehicle with this design-optimized facelift version produced by the inventor of the original Heki roof window. The Mini Heki FL model offers three opening positions via a hand lever: fully open, half open, and for inclement weather. Select from a range of variants to seamlessly complement your roof, and elevate your journey.

Features

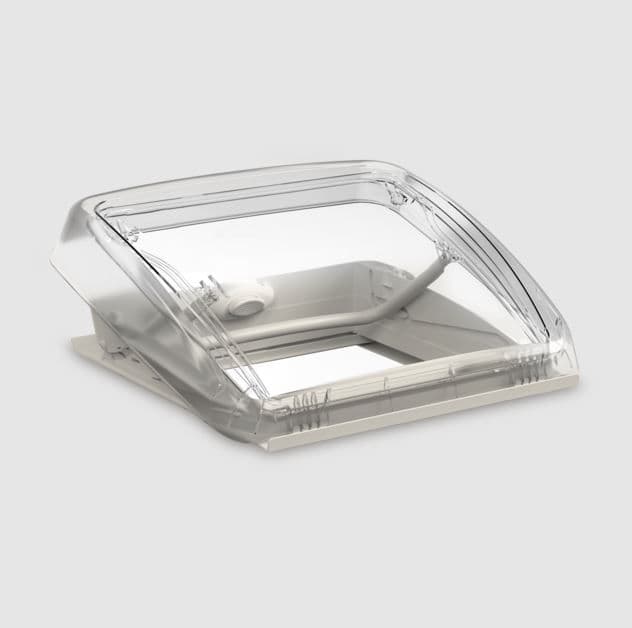

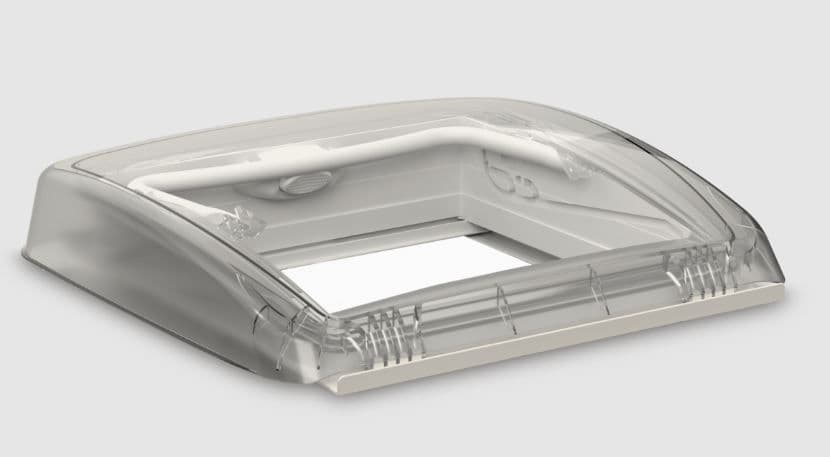

• Aerodynamically shaped glass dome

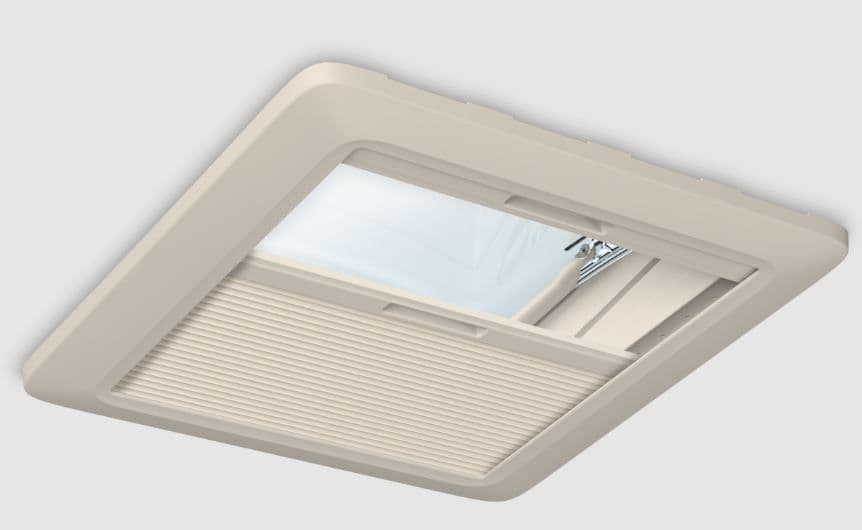

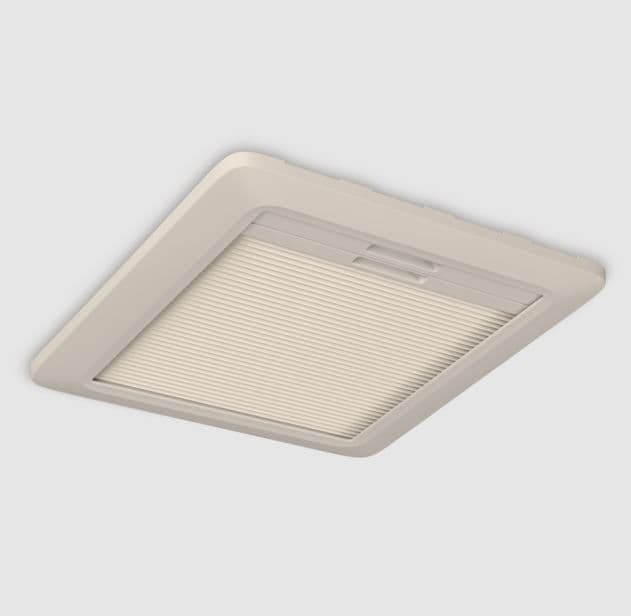

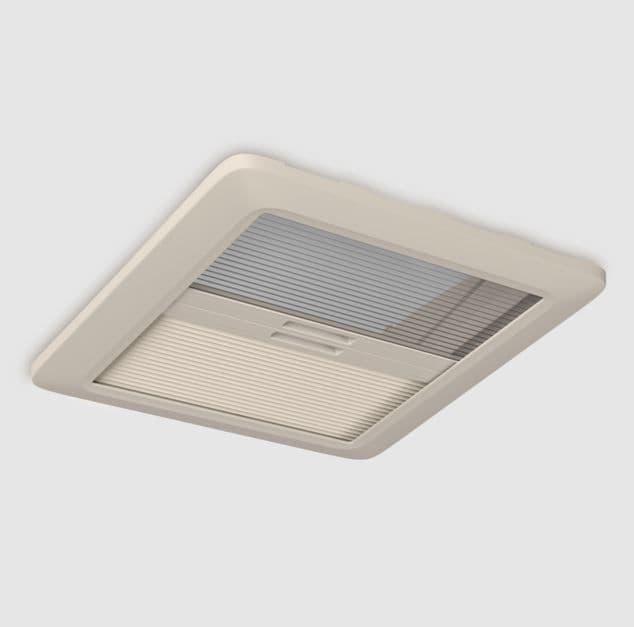

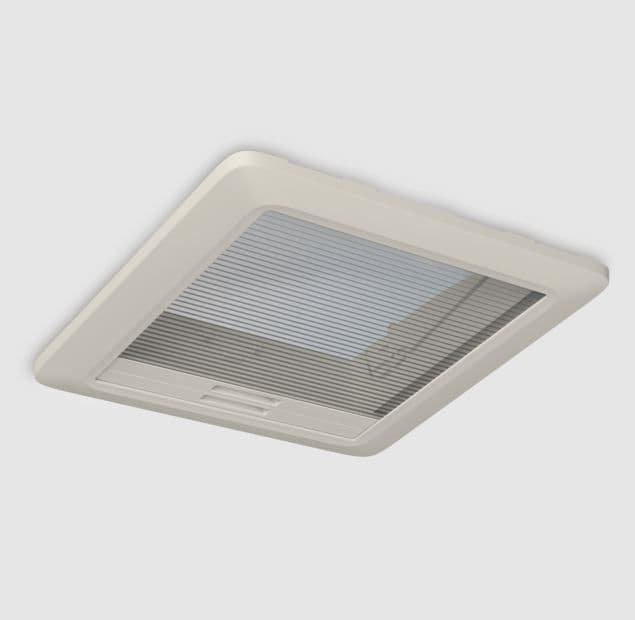

• Inner frame holds a darkening blind and fly screen, separately adjustable
• Premium double-walled PMMA acrylic glazing minimizes noise from rain or hail

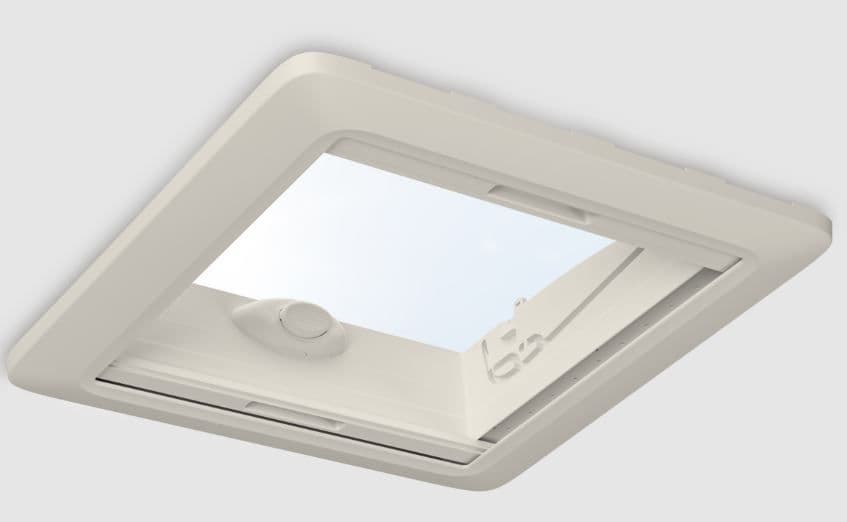

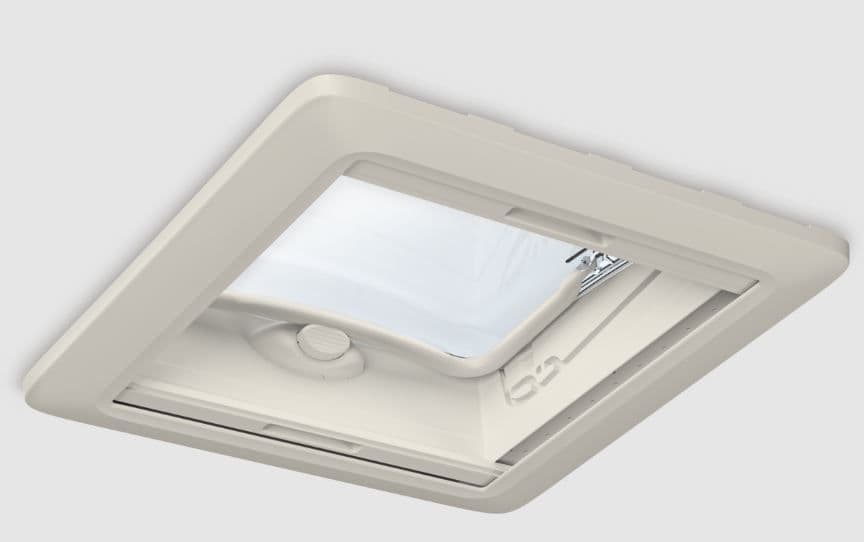

• Stylish interior frame and plain, single-coloured blind fabric
• Handle-operated

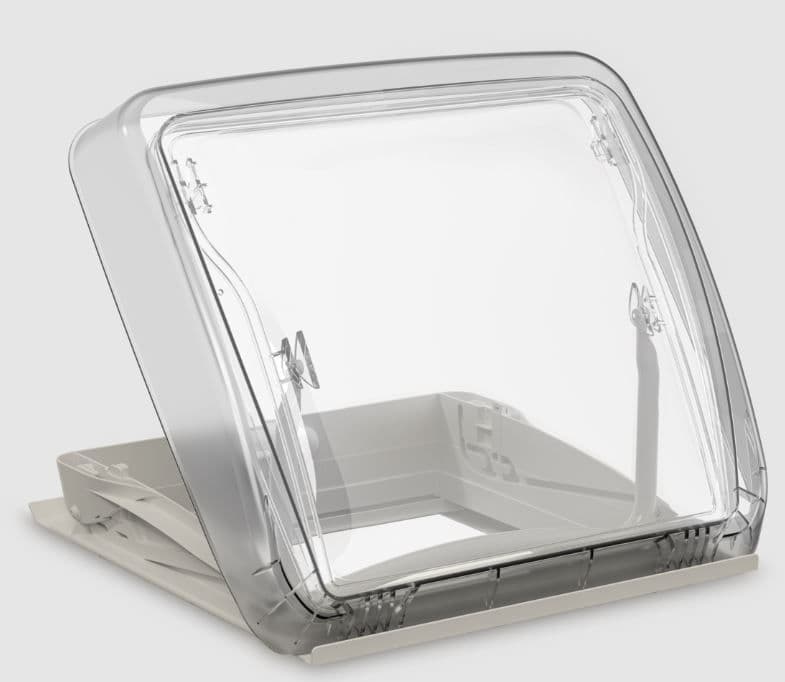

• Switch easily between fully open, half-open and a position for inclement weather
• Continuous ventilation

Dimensions

• Dimensions product depth, [mm] 520
• Dimensions product width, [mm] 535
• Dimensions ordered width, [mm] 400
• Dimensions ordered height, [mm] 400
• Net weight, [kg] 3.30
• Dimensions opening width, [mm] 384
• Dimensions opening height, [mm] 364
• Standard mount. material thickness 1 min, [mm] 25
• Standard mount. material thickness 1 max, [mm] 42
• Ventilation opening, 70
• Cut out height, [mm] 400
• Cut out width, [mm] 400

Installation Instructions
